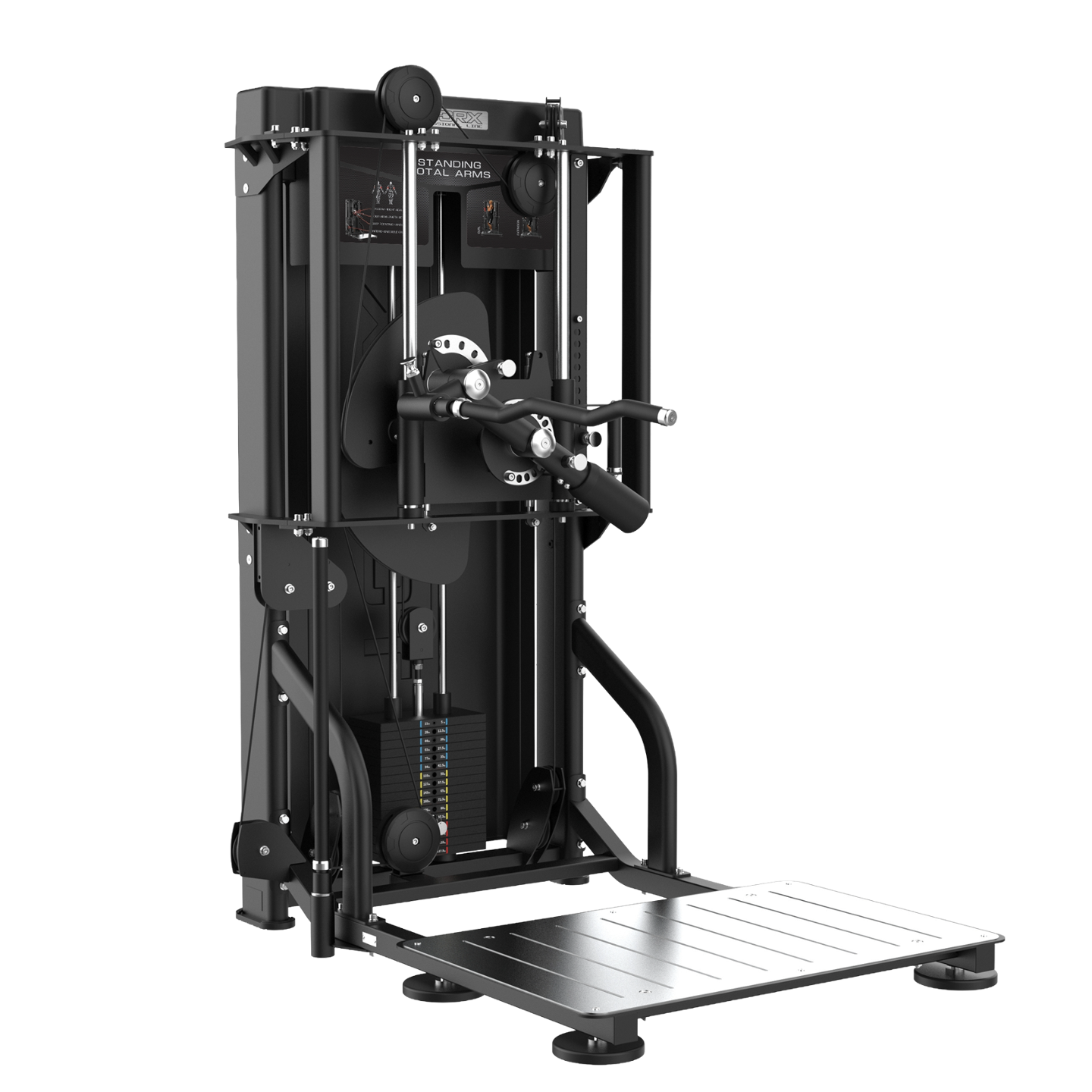

PLX-9040 STANDING TOTAL ARMS

Professional
Vertical

| News |

Atlas Line Pin-Loaded: PLX-9040 STANDING TOTAL ARMS; NEW

STANDING TOTAL ARMS; Code: PLX-9040

KEY POINTS
FIRE SYSTEM
Single-lever

FOAM CUSHIONS HIGH DENSITY
with PU upholstery

ADJUSTMENT

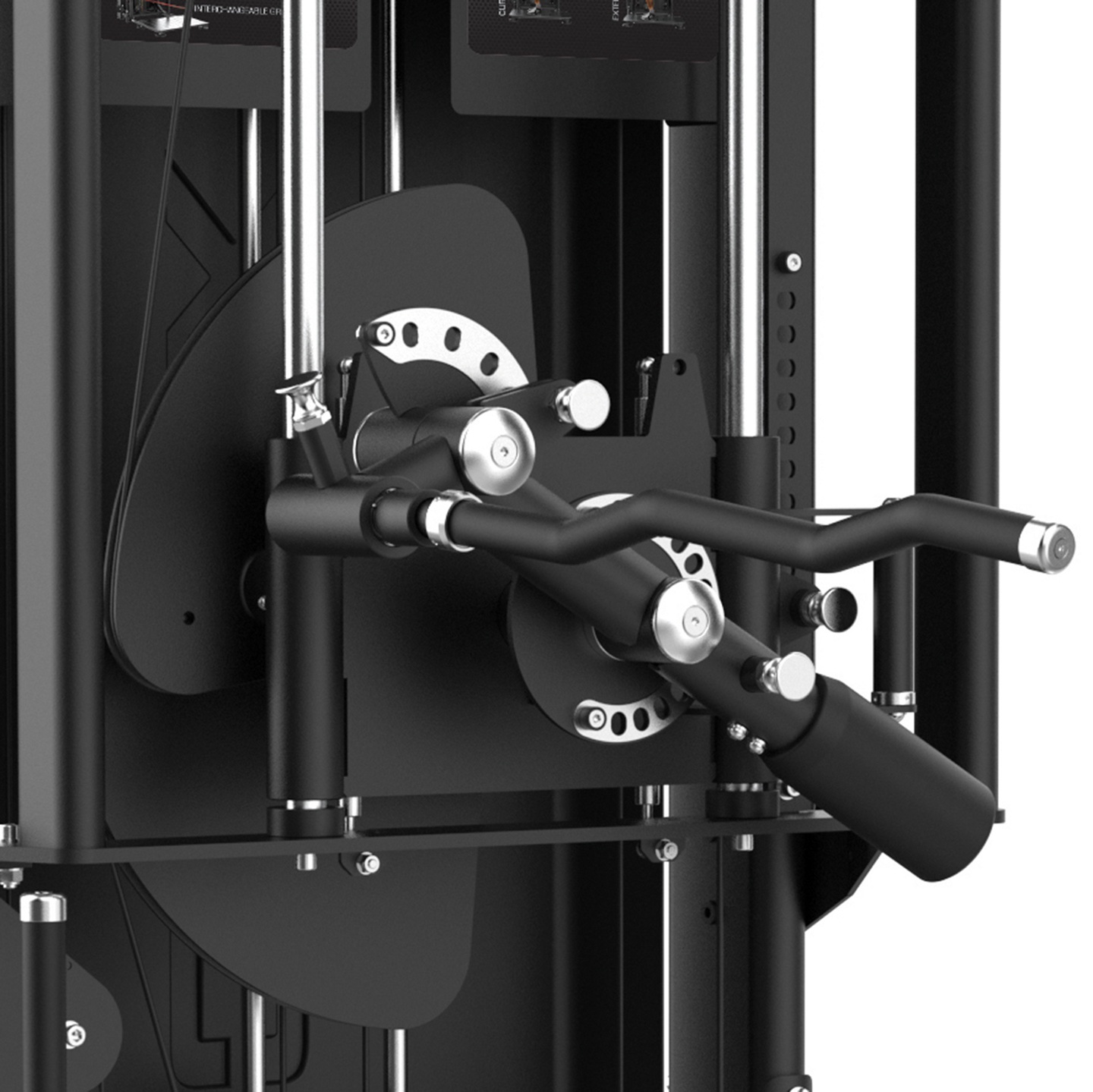

10-position thrust lever adjustment, 4-position bar depth adjustment, 13-position arm rotation, 360° rotating handles

Weight Stack of 80 kg
with integral protective shroud

Images and data presented in the catalog and on the website's product sheets may vary in some details from the original products Some product images may include settings or backgrounds created using artificial intelligence, for illustrative purposes only.
The products shown are real, and their characteristics are not altered by the use of AI.

COMPARE

Technical Specifications

Product Code
Product Code	PLX-9040
Cushioning
Cushioning	High-density foam with PU upholstery
Maximum User Weight
Maximum User Weight	120 Kg
Application
Application	PROFESSIONAL
Features
Features	80-kg steel weight set Pulley System made of POM, a material with excellent sliding characteristics and superior wear resistance - PREMIUM GRADE bearings. Steel cable system ø 5 mm, maximum load 1500 kg. 10-position adjustmentof the push rod linkage starting point 4-position bar depth adjustment 13-position arm rotation adjustment 360° Rotating Handle Adjustment Standard accessories: 2 handles
Accessories
Accessories	Standard accessories: side bar
Frame
Frame	oval section steel tubing 50x100 mm - thickness 3 mm and round ø 60 mm - thickness 3 mm
Product Weight
Product Weight	288.5 kg
Product Dimensions
Product Dimensions	1377 x 1075 x 1800 mm
Coating
Coating	double epoxy powder coating, scratch-resistant. Tubular frame treated with sandblasting and phosphating
Certifications
Certifications	EN20957-1 / EN957-2 Class S
EAN
EAN	8029975812144
