atlas line pin loaded

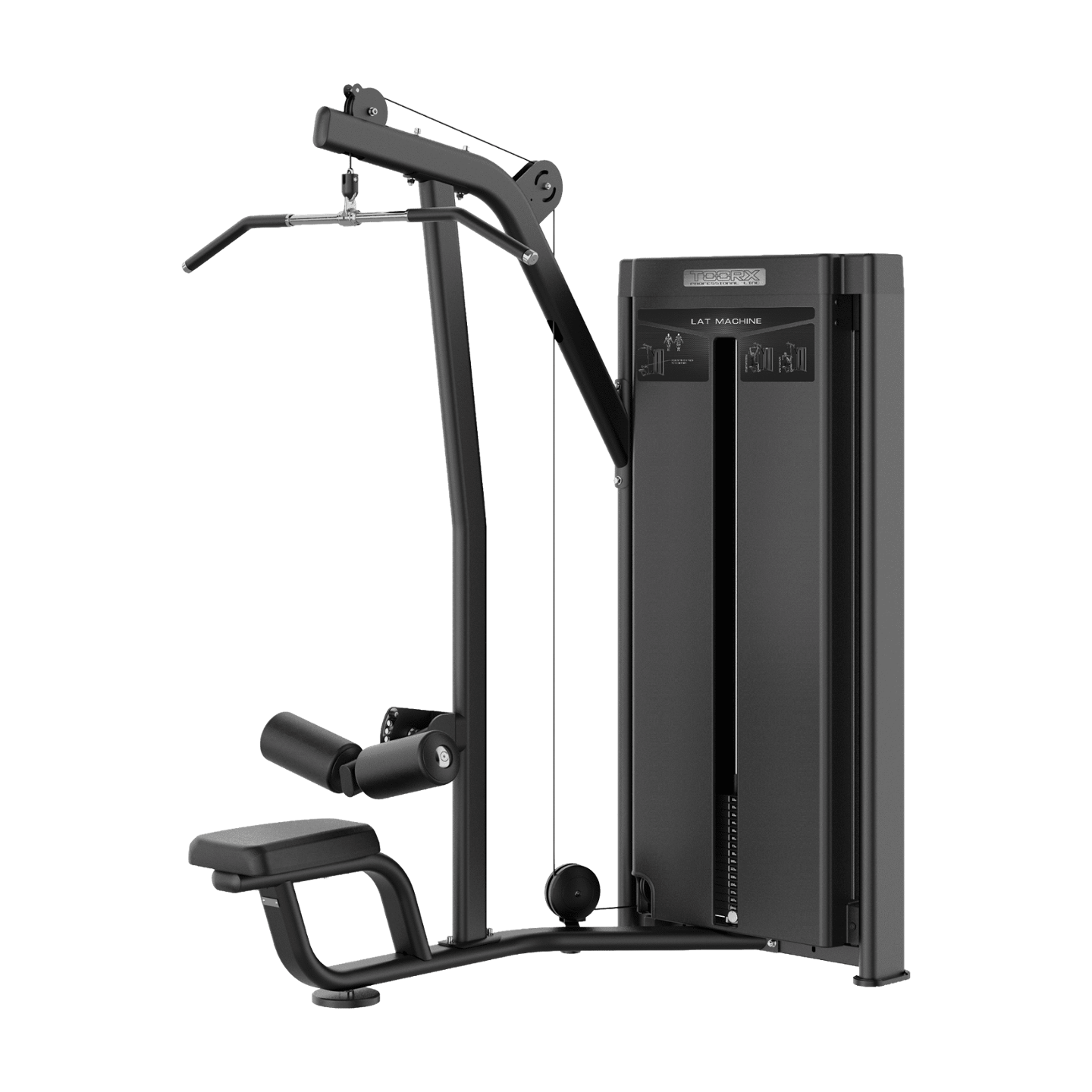

PLX-7330 LAT MACHINE
NEW
LAT MACHINE
cod. PLX-7330
PLX-7330 LAT MACHINE
  • KEY POINTS
  •  FIRE SYSTEM
    single-vector
     FOAM CUSHIONS HIGH DENSITY
    with PU upholstery
     ADJUSTMENT
    4-position leg locking rollers
     Weight Stack of 100 kg
    with integral protective shroud
Images and data presented in the catalog and on the website's product sheets may vary in some details from the original products
loading ... COMPARE COMPARE NOW

Technical Specifications

Product Code
Product CodePLX-7330
Cushioning

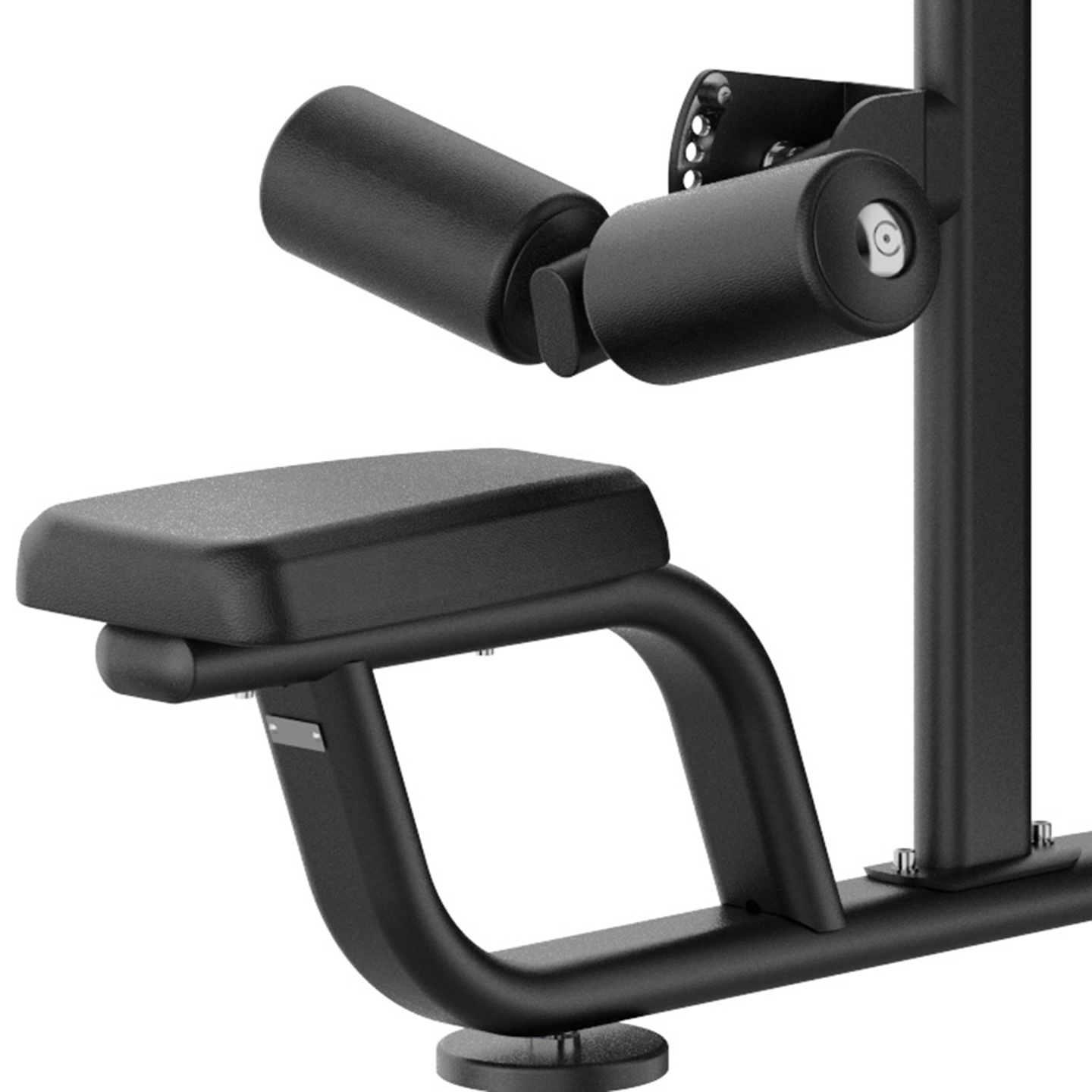

CushioningHigh-density foam with PU upholstery
Maximum User Weight
Maximum User Weight120 Kg
Application
ApplicationPROFESSIONAL
Features
Features
  • Weight Stack 100 kg steel

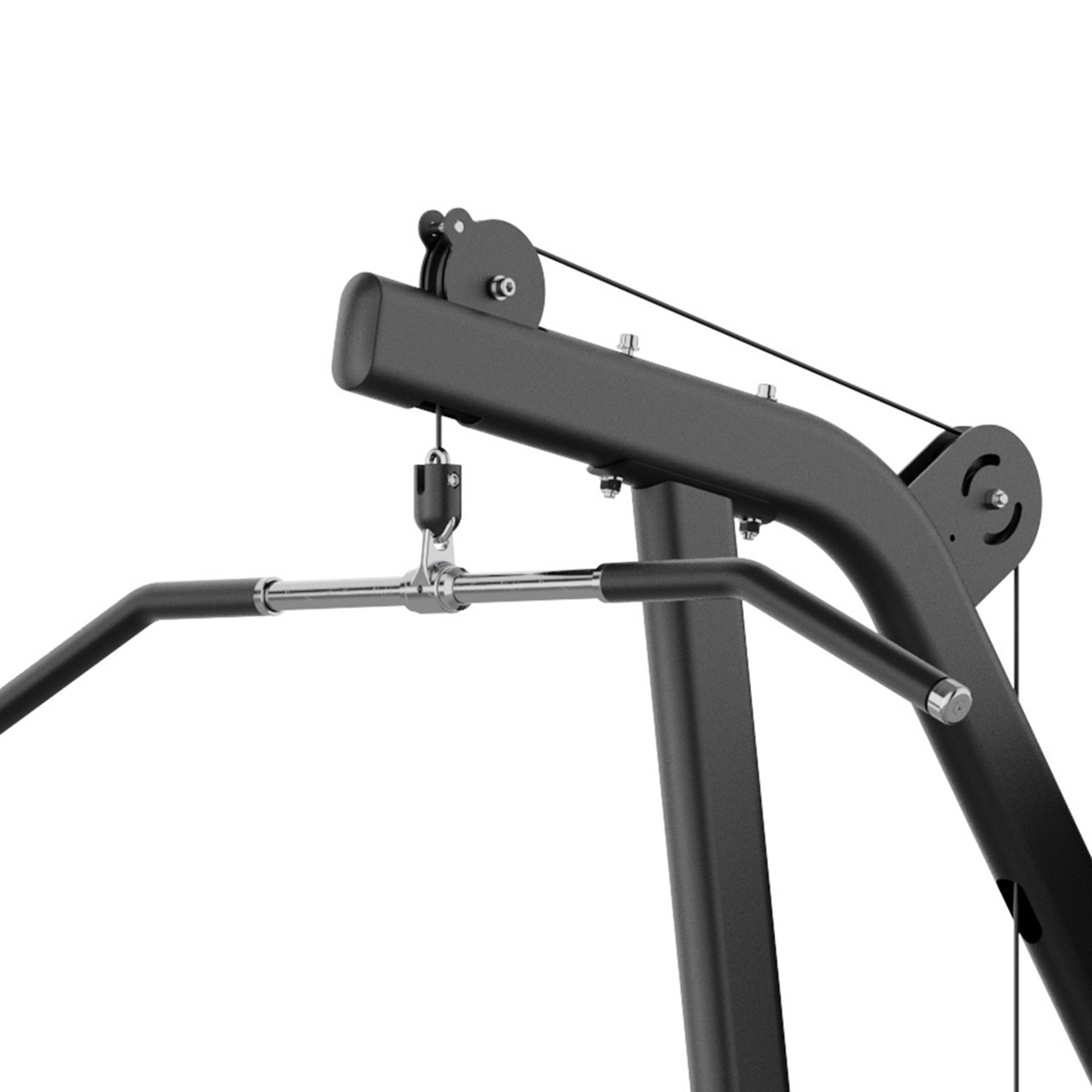

  • Pulley System made of POM, a material with excellent sliding characteristics and superior wear resistance - PREMIUM GRADE bearings. Steel cable system ø 5 mm, maximum load 1500 kg.
  • Leg locking rollers adjustable to 4 positions
Accessories
AccessoriesStandard accessories: side bar
Frame
Frameoval section steel tubing 50x100 mm - thickness 3 mm and round ø 60 mm - thickness 3 mm
Product Weight
Product Weight212 kg
Product Dimensions
Product Dimensions1540 x 984 x 2204 mm
Coating
Coatingdouble epoxy powder coating, scratch-resistant. Tubular frame treated with sandblasting and phosphating
Certifications
CertificationsEN20957-1 / EN957-2 Class S
EAN
EAN8029975811666
