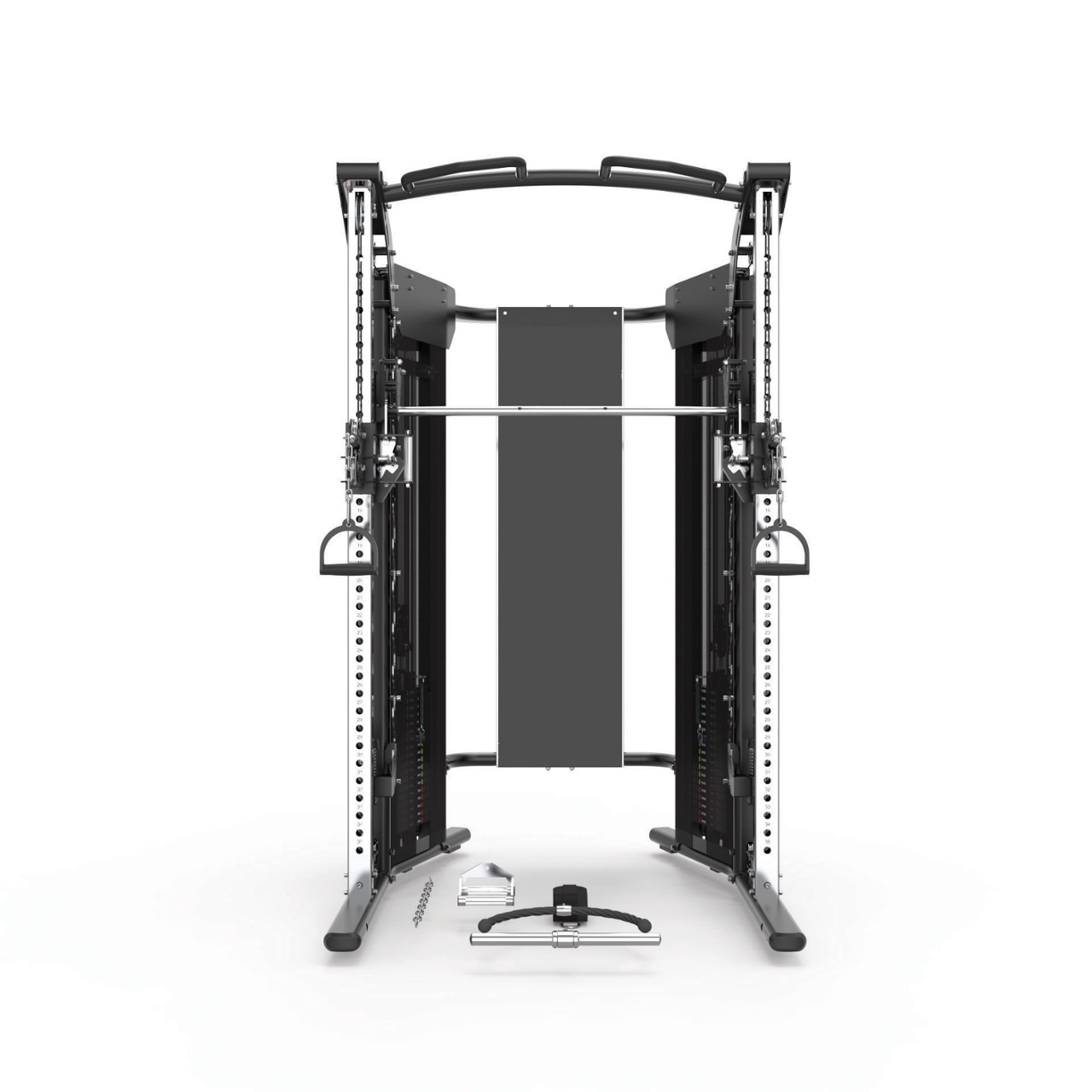

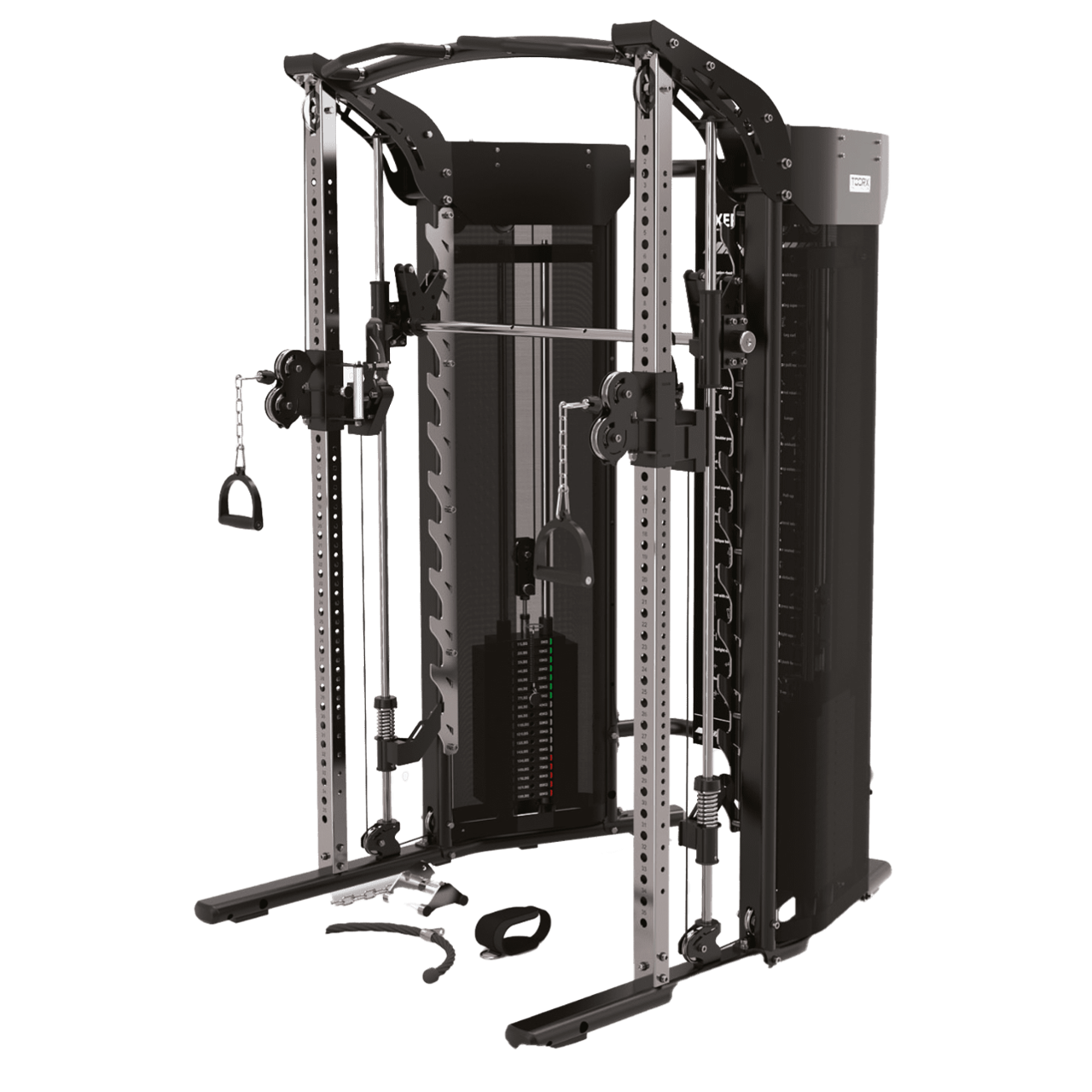

ASX-7000

Professional
Vertical

| News |

all in one: ASX-7000; 3-IN-1 dual pulley, Smith machine, rack; code ASX-7000

KEY POINTS
PULLEY
adjustable 300-1875 mm in 50 levels, center distance 25-50 mm

MAXIMUM USER WEIGHT
160 Kg

RATIO
1:2 / Smith bar - 1:2 / Fly handle - 1:2 / Lat pull down - 1:2 / Seated rowing

BARBELL
1282 mm, sliding on linear ball bearings,
2 safety devices with adjustable hook, adjustable to 11 positions (455-1750 mm), 130 mm pitch. Disc holder diameter 50 mm. Patented weight stack guided rocker arm attachment system.

EQUIPMENT
dual pulley, Smith machine, rack. Pull-up bar, 8 spring-loaded disc holders ø49 mm. Attachments: ankle strap, double triceps rope, chain, 2 pull-up handles, double handle, triceps bar, barbell and curl barbell.

ASX 7000: prestigious model at the top All in One line, the undisputed leader in this market segment. In addition to boasting outstanding technical features and performance, as well as the possibility of connecting the guided barbell to weight stacks and an exclusive and comprehensive range of attachments to make it even more multifunctional, the ASX 7000 also boasts an elegant and attractive look and a very small footprint, features that are uncommon in the All in One category. These important advantages allow it to find a place in the most refined and sophisticated environments, even when space is at a premium. Also included in the Professional price list.

Images and data presented in the catalog and on the website's product sheets may vary in some details from the original products

COMPARE

Technical Specifications

Product Code
Product Code	ASX-7000
Maximum User Weight
Maximum User Weight	160 kg
Features
Features	2x90 kg steel weight stack with protective cover Adjustable PULLEY 300-1875 mm on 50 levels, center distance 25-50 mm Balance bar: 1282 mm, sliding on linear ball bearings, 2 safety catches with adjustable hook, adjustable to 11 positions (455-1750 mm), 130 mm pitch. Disc holder diameter 50 mm. Patented balance bar attachment system guided to the weight stacks. Equipment 3-IN-1dual pulley, Smith machine, rack. Pull-up bar, 8 spring-loaded disc holders ø49 mm. Attachments: ankle strap, double rope for triceps, chain, 2 pull-up handles, double handle, triceps bar, barbell, and curl bar OPTIONAL CODE LEG-PRESSASX Vertical leg press CODE M-BARASX Multifunctional bar CODE MLIFTASX-4.5-6 Monolift COD. LAT-SEATASX-4.5-6 Lat seat CODE W-HOLDERASX Weight holder pin COD. LPDASX-4.5-6 Lat pull down CODE J-ARMSASX6000 Jammer arms CODE W-HOLDERASX-7 Set of 6 weight holder pins CODE D-HANDLEASX-7 Parallel CODE W-HOLDER-SMASX-7 Set of 2 weight pins for Smith bar COD. LMASX-7 Landmine CODE SB-FSASX-7 Rocker arms and safety stops CODE LR-FOOTPLATEASX-7 Footplate for low row
Frame
Frame	rectangular section tubular 50x70 mm - thickness 2.5 and oval 50x100 - thickness 2.5 mm
Product Weight
Product Weight	382.8 kg
Product Dimensions
Product Dimensions	1320 x 1520 x 2180 mm
Certifications
Certifications	EN20957-1 / EN957-2 class S
