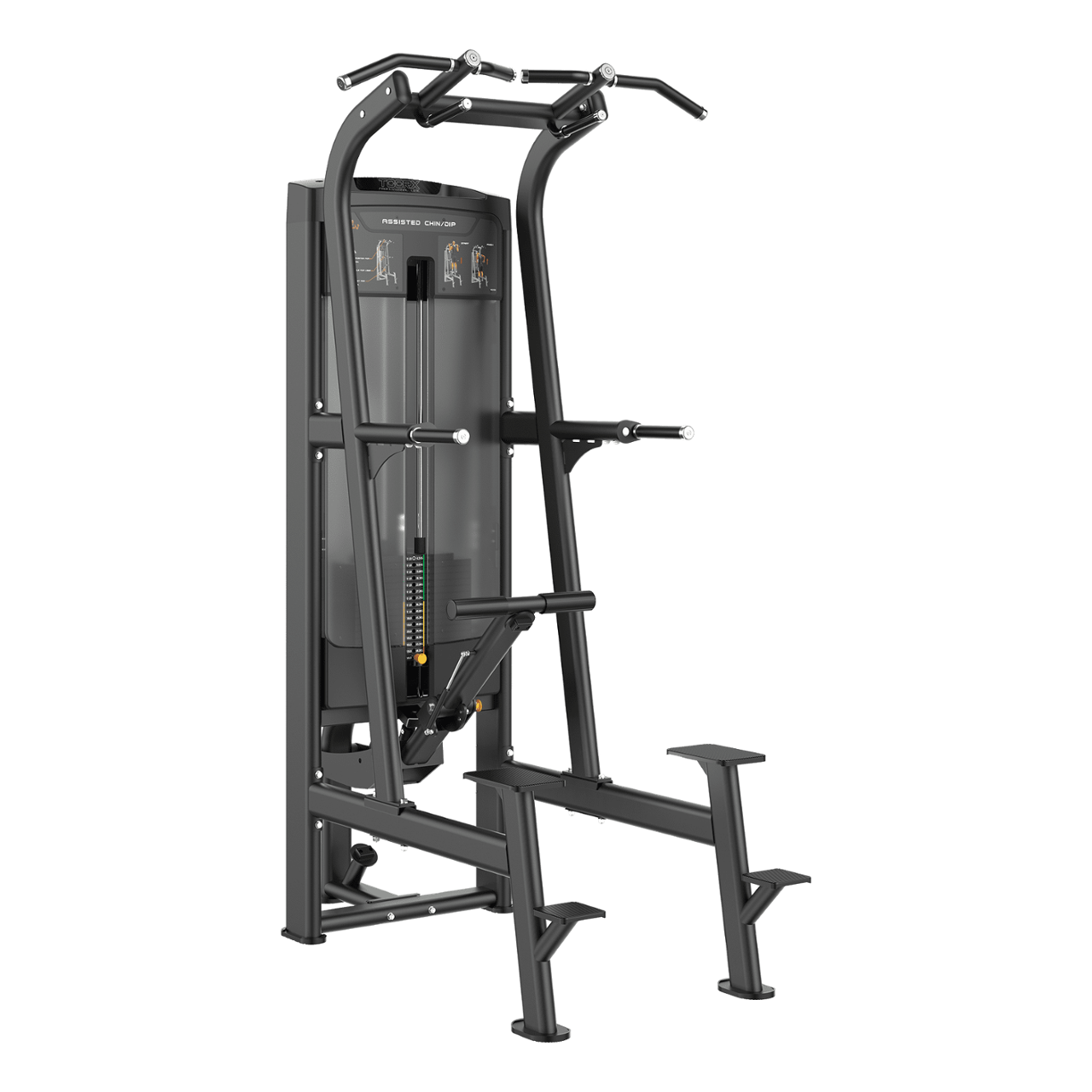

PLX-8400 ASSISTED PULL UP/CHIN UP/DIP
NEWS
ASSISTED PULL UP/CHIN UP/DIP
code PLX-8400
PLX-8400 ASSISTED PULL UP/CHIN UP/DIP
  • KEY POINTS
  •  ASSISTANCE SYSTEM
    on the platform
     FOAM CUSHIONS HIGH DENSITY
    with PU upholstery
     ADJUSTMENT
    folding platform
     Weight Stack of 90 kg
    with integral protective shroud
Images and data presented in the catalog and on the website's product sheets may vary in some details from the original products
loading ... COMPARE COMPARE NOW

Technical Specifications

Product Code
Product CodePLX-8400
Maximum User Weight
Maximum User Weight120 Kg
Application
ApplicationPROFESSIONAL
Features
Features
  • 90kg steel weight pack
  • Pulley System made of POM, a material with excellent sliding characteristics and superior wear resistance - PREMIUM GRADE bearings. Steel cable system ø 5 mm, maximum load 1500 kg.
  • Foldable footrest adjustments
Frame
FrameTubular steel with oval section 50x100 mm - 3 mm thickness, and round section ø 60 mm - 3 mm thickness
Product Weight
Product Weight221 kg
Product Dimensions
Product Dimensions1745 x 1195 x 2430 mm
Packaged Product Weight
Packaged Product Weight242 kg
Coating
Coatingdouble epoxy powder coating, scratch-resistant. Tubular frame treated with sandblasting and phosphating
Certifications
CertificationsEN20957-1 / EN957-2 Class S
EAN
EAN8029975806921

#gallery PLX-8400 ASSISTED PULL UP/CHIN UP/DIP

Tag your photos and videos with #toorxprofessional #strengthofsolidity and become part of the ToorxProfessional community!

PDF Manual

Download the instruction manual for your TOORX equipment in .PDF format.

» click here.
Available languages:

Technical Data Sheet PDF

Download the technical data sheet for your TOORX equipment in .PDF format.

» Click here.
